PingLive

Overview

PingLive Sonar is an innovative wireless Live Sonar system that uses your Phone or Tablet as the display via Wi-Fi connection. The transducer unit features an integrated processor, eliminating the need for a separate black box and reducing number of wires by 50% compared to traditional LiveSonar systems. With the included Wi-Fi Router, the transducer transmits sonar data to your screen, delivering sharp, real-time underwater visuals with minimal setup.

PLUG & PLAY

• View and control live image with Phone or Tablet (iOS & Android)

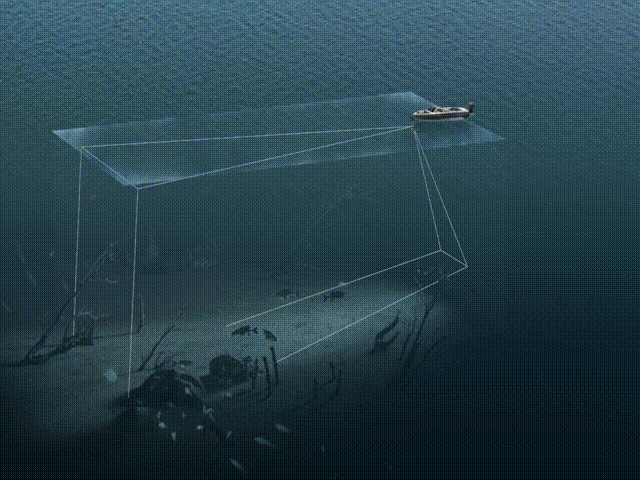

Viewing modes

• Panoramic View scan large areas to easily spot structures and fish
• Down View designed to see the activity beneath your boat with a 135-degree view or directly beneath an ice hole
• Forward View to cover various fishing scenarios

Innovative Design

• Built-In Processor - No more bulky black box needed! Featuring an integrated processor within the sonar unit.

• Reinforced cable - 20FT durable and lightweight sonar cable (260g), built for long-term reliability—perfect for boats, docks, and ice fishing.

Compatible Devices

Find the complete list of Apple and Android devices that are compatible with PingLive below, so you can confirm your device works seamlessly.

Apple
Android

Device not listed?

You can test compatibility by downloading the Android “Accuphy Sonar” BETA app. Once installed, open the app, go to Settings, and enable Simulator Mode. If the app runs smoothly in Simulator Mode, your device should have no trouble running our products.

Product Specifications

Transducer Specifications

Dimensions: 6.3 x 4.1 x 1.9 in.
Weight: 1080g (with cable)
Frequencies: 450 - 1,100 kHz
Power Usage: 22W typical, 40W max
Operating Temperature: 0°C to 40°C
Maximum Depth/Distance: 91m (300ft.)

Router One Specifications

Dimensions: 3.35 x 2.95 x 1.38 in
Weight: 0.12 kg
Temperature Range: -20°C to 40°C
Transducer Ports: 1
Power Input: 11-18 VDC
Power Usage: 3W typical, 6W max
Frequency: 2.4/5.8GHz
Wi-Fi Modes: IEEE802.11A/B/G/N/AC
Wi-Fi Effective Range: 70 ft*

*A power source capable of supplying at least 6A output is required for optimal performance.

What's in the Box?

• PingLive transducer
• Wi-Fi Router
• Panoramic mount
• Barrel mount
• Shaft mount
